Eickhoff Shearer Explosion-Proof Vacuum Contactor | Model: C 514596 Z

Description

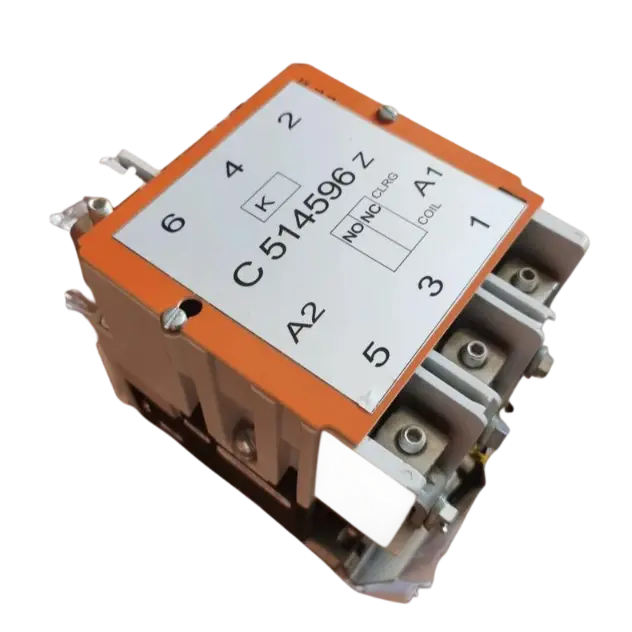

Eickhoff Vacuum Contactor C 514596 Z Product Overview

This product is an original explosion-proof vacuum contactor from Eickhoff, Germany, with the complete model designation C 514596 Z. The suffix “Z” indicates that it is a complete accessory assembly. This contactor is specifically designed for explosive gas environments in underground coal mines. Its core arc-extinguishing medium is a high vacuum, providing extremely strong arc-extinguishing capabilities. It directly controls the on/off of the main circuit of high-power motors in coal mining machines (such as cutting motors, traction motors, and pump motors), possessing extremely long electrical and mechanical lifespans, and can safely interrupt fault currents. It is the core actuator switch in the high-voltage power distribution unit or drive control cabinet of a coal mining machine.

Core Features and Technical Advantages

Intrinsically Safe Arc Extinguishing: The vacuum arc-extinguishing chamber seals the contacts in a vacuum environment. After the arc is generated, it quickly diffuses and extinguishes, eliminating the risk of external flames and explosions, meeting the most stringent explosion-proof requirements (such as Ex d I Mb) in underground coal mines.

High Reliability and Long Lifespan: Extremely low contact wear in a vacuum environment, resulting in an electrical lifespan far exceeding that of traditional air contactors. It can withstand frequent start-stop operations, making it suitable for the heavy-load, cyclical operation characteristics of coal mining machines.

Compact Explosion-Proof Design: A compact structure and robust housing, typically using special materials and sealing designs that meet explosion-proof standards, can withstand the harsh environments of underground humidity, dust, and vibration.

Integrated Accessories: As a “Z”-type assembly, it typically includes the contactor body, necessary mechanical interlocking devices, auxiliary contact groups, and sometimes integrates interfaces for overload protection relays or motor integrated protection modules, achieving integrated control and protection.

Typical Applications and Fault Indication

Applicable Equipment: Main motor control circuits of all Eickhoff series coal mining machines (such as SL, EDW, EiMC).

Main Controlled Objects: Cutting motors, traction motors, crusher motors, hydraulic pump motors, etc.

Common Reasons for Replacing This Contactor:

The contactor does not engage properly, emitting abnormal noise or vibration.

Contact erosion and adhesion prevent the motor from disconnecting. Poor contact at auxiliary contacts causes the control system to misjudge the “closed/open” status.

Air leakage in the vacuum interrupter chamber leads to decreased insulation or inability to extinguish the arc (possibly accompanied by a discharge sound).

Mechanical mechanism jamming, resulting in incomplete operation.

Quality and Service Commitment: Every vacuum contactor we provide is a genuine Eickhoff assembly, with electrical parameters (rated voltage, current, breaking capacity), installation dimensions, and explosion-proof rating completely identical to the original equipment. When replacing, please be sure to follow the safety procedures for disconnecting, testing, and discharging power, and check that the settings of the matching protective relay are correct. We can provide technical parameter verification services.
